Types of pipe flanges are essential components used in industrial piping systems. Pipe flanges are one of the most important components in industrial piping systems. They are used to connect pipes, valves, pumps, and other equipment to form a secure and leak-proof pipeline system. Flanges allow easy assembly, maintenance, inspection, and modification of pipelines used in industries such as oil & gas, petrochemical, power plants, water treatment, and manufacturing.

Selecting the correct type of flange is essential for maintaining system safety and efficiency. Different flange designs are created for specific pressure ratings, temperature conditions, and industrial applications.

In this guide, we will explore the most commonly used types of pipe flanges in piping systems.

https://steelflangemfg.com/flanges-2/

1. Weld Neck Flange

Weld neck flanges are widely used in high-pressure and high-temperature applications. These flanges have a long tapered hub that provides reinforcement and reduces stress concentration in the pipe.

Key Features

  • Strong and reliable connection

  • Ideal for high-pressure pipelines

  • Provides smooth stress distribution

Applications

  • Oil and gas pipelines

  • Power plants

  • Chemical industries

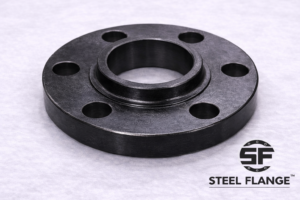

2. Slip-On Flange

Slip-on flanges are easy to install because the pipe simply slips inside the flange before welding. They are welded both inside and outside for additional strength.

Key Features

  • Easy installation

  • Lower cost compared to weld neck flanges

  • Suitable for low to medium pressure systems

Applications

  • Water pipelines

  • Fire protection systems

  • Cooling water lines

3. Blind Flange

Blind flanges are used to close the end of a piping system. These flanges do not have a bore in the center and are designed to seal the pipeline completely.

Key Features

  • Used for closing pipe ends

  • Allows future pipeline expansion

  • Withstands high pressure

Applications

  • Pressure testing systems

  • Pipeline maintenance

  • Temporary pipeline closures

4. Socket Weld Flange

Socket weld flanges are commonly used for small diameter pipes that operate under high pressure. The pipe is inserted into the socket and then welded.

Key Features

  • Strong joint for small pipelines

  • Reduces leakage risk

  • Ideal for high-pressure services

Applications

  • Hydraulic pipelines

  • Steam systems

  • Chemical plants

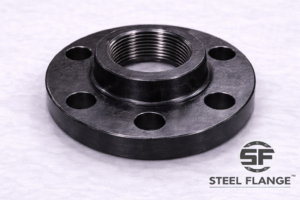

5. Threaded Flange

Threaded flanges are designed with internal threads and can be connected to threaded pipes without welding.

Key Features

  • No welding required

  • Easy installation and removal

  • Suitable for hazardous environments

Applications

  • Gas pipelines

  • Water systems

  • Low-pressure industrial applications

6. Lap Joint Flange

Lap joint flanges are used with stub ends and are ideal for systems that require frequent dismantling for inspection or maintenance.

Key Features

  • Easy alignment during installation

  • Suitable for frequent maintenance

  • Cost-effective for expensive materials

Applications

  • Food processing industries

  • Pharmaceutical plants

  • Chemical processing plants

Importance of Choosing the Right Flange

https://steelflangemfg.com/flanges-2/

Selecting the right flange type ensures:

  • Leak-proof piping connections

  • Long service life of equipment

  • Safe industrial operations

  • Reduced maintenance costs

Industrial flanges are typically manufactured according to international standards such as ASME B16.5, ASTM A105, and ASTM A182, ensuring reliability and durability in demanding environments.

Conclusion

Pipe flanges play a crucial role in ensuring the efficiency and safety of industrial piping systems. From weld neck flanges used in high-pressure pipelines to blind flanges used for sealing pipe ends, each type serves a specific purpose.

Choosing high-quality flanges from a reliable supplier helps industries maintain operational efficiency and safety.
