Stainless Steel Flanges: Types, Materials, Sizes, Standards & Manufacturing Process

Overview of Stainless Steel Flanges

Stainless steel flanges are essential components used in industrial piping systems to connect pipes, valves, pumps, and other equipment securely. Industries such as oil & gas, petrochemicals, refineries, power plants, water treatment plants, and infrastructure projects depend on high-quality stainless steel flanges for safe and long-term operation.

Due to their excellent strength, corrosion resistance, and durability, stainless steel flanges are widely used in both domestic and international projects. Buyers across the globe actively search for reliable information related to the types, materials, sizes, standards, and manufacturing process of stainless steel flanges before selecting a supplier.

This blog provides a complete overview of stainless steel flanges to help buyers make informed sourcing decisions.

What Are Stainless Steel Flanges?

Stainless steel flanges are forged or machined circular components used to join piping systems. They allow easy installation, dismantling, inspection, and maintenance while ensuring leak-proof connections under high pressure and temperature conditions.

https://steelflangemfg.com/flanges-2/

Types of Stainless Steel Flanges

Stainless steel flanges are available in different types based on application requirements:

Weld Neck Flanges

Weld neck flanges are used in high-pressure and high-temperature applications. They provide excellent strength and stress distribution.

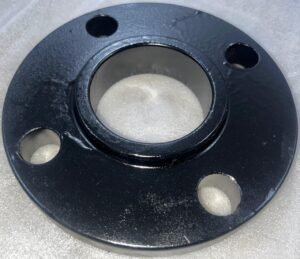

Slip On Flanges

Slip on flanges are easy to install and cost-effective. They are commonly used in low to medium pressure systems.

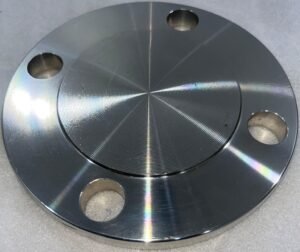

Blind Flanges

Blind flanges are used to close the end of piping systems. They are ideal for pressure testing and future expansion.

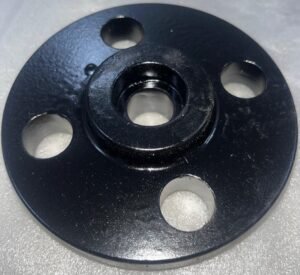

Socket Weld Flanges

Socket weld flanges are designed for small diameter, high-pressure pipelines.

Threaded Flanges

Threaded flanges are used where welding is not possible and are suitable for low-pressure applications.

Lap Joint Flanges

Lap joint flanges are used with stub ends and allow easy alignment and rotation.

Stainless Steel Flange Materials (MOC)

Material selection plays a crucial role in flange performance. Commonly used stainless steel grades include:

  • Stainless Steel 304 / 304L

  • Stainless Steel 316 / 316L

  • Stainless Steel 321

  • Stainless Steel 904L

  • Duplex Stainless Steel

  • Super Duplex Stainless Steel

The choice of material depends on corrosion resistance, operating temperature, pressure, and service environment.

Sizes & Pressure Ratings of Stainless Steel Flanges

Stainless steel flanges are manufactured in a wide range of sizes and pressure classes to meet various industrial requirements.

https://steelflangemfg.com/flanges-2/

Size Range

  • 1/2” to 24”

Pressure Ratings

  • ASME / ANSI: 150, 300, 600, 900, 1500, 2500

  • DIN / EN: PN6, PN10, PN16, PN25, PN40

These size and pressure combinations make stainless steel flanges suitable for low, medium, and high-pressure applications.

International Standards for Stainless Steel Flanges

Stainless steel flanges are manufactured in compliance with internationally recognized standards to ensure dimensional accuracy, material quality, and global acceptance, including:

  • ASME B16.5 (Pipe flanges and flanged fittings – sizes 1/2” to 24”)

  • ASME B16.47 (Large diameter flanges – where applicable)

  • ASTM A182 (Forged stainless steel flanges – material standard)

  • ASTM A240 (Stainless steel plates – material standard)

  • ASME / ANSI

  • DIN / EN

  • BS

  • JIS

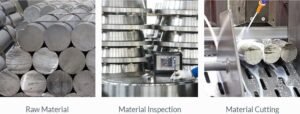

Manufacturing Process of Stainless Steel Flanges

https://steelflangemfg.com/flange-manufacturing-process/

The quality of stainless steel flanges depends heavily on the manufacturing process.

Raw Material Selection

Certified stainless steel raw material is selected based on grade and application requirements.

Forging & Forming

The material is forged to enhance grain structure and mechanical strength.

Machining

CNC and conventional machines are used for turning, drilling, facing, and bolt-hole machining to achieve accurate dimensions.

Heat Treatment

Heat treatment improves mechanical properties and relieves internal stresses.

Quality Control & Inspection

Dimensional checks, visual inspection, and documentation ensure compliance with required standards.

Surface Finishing & Packaging

Flanges are surface finished, properly marked, and packed using export-grade packaging for safe delivery.

Applications of Stainless Steel Flanges

  • Oil & Gas Industry

  • Petrochemical & Chemical Plants

  • Refineries

  • Power Plants

  • Water Treatment Plants

  • Infrastructure & Construction Projects

Why Buyers Prefer Stainless Steel Flanges

  • Excellent corrosion resistance

  • High strength and durability

  • Easy installation and maintenance

  • Long service life

  • Suitable for high-pressure applications

Conclusion

Stainless steel flanges play a vital role in industrial piping systems. Understanding the types, materials, sizes, standards, and manufacturing process helps buyers make informed decisions. Choosing a reliable stainless steel flange manufacturer ensures consistent quality, safety, and long-term performance.
